LITHOZ - MANUFACTURE THE FUTURE.

WE ARE CERAMIC 3D PRINTING.

SECTORS AND APPLICATIONS

From industrial to medical and beyond. Lithoz enables companies to reinvent their products. Explore unique applications possible only with the quality of the LCM.

3D printers for high-performance and bioresorbable ceramics.

Best in-class materials to meet and exceed conventionally produced ceramics. Lithoz materials uniquely combine high resolution, exceptional surface quality, and mechanical properties tuned for production.

Did you know why SILICON NITRIDE is a game changer for many industries?

Due to its superb biocompatibility, as well as good osseointegration and anti-infective (bactericidal) properties, silicon nitride is the perfect candidate for #dental, #orthopedic and craniomaxillofacial #implants. Able to withstand extremely high temperatures and rapid temperature changes (thermo-shock), silicon nitride components are changing the game - not only in the #aerospaceindustry but in many others too. The advantages of LCM technology, have the potential to redesign innovative and entirely new shapings of non-oxide #ceramic materials - in particular, silicon nitride-based materials. This process enables the fabrication of highly complex components which cannot be manufactured via conventional processing techniques, such as insulators, implants, impeller, microturbines and cutting tools.

Do you want to know more? Read the whole study about **"Dense, Strong, and Precise Silicon Nitride-Based Ceramic Parts by Lithography-Based Ceramic Manufacturing".**

Did you know why the aerospace industry chooses ceramic 3D printing?

Only with 3D printing is it possible to produce such levels of highly complex internal geometries. These designs, as well as other demanding material properties, cannot be achieved using conventional methods.
This large ceramic laval nozzle with inner cooling channels was produced for the aerospace industry using LCM technology.

Height: 189mm | Diameter: 84mm | Material: LithaLox 350

Did you know that 3D printing can produce highly accurate dental restorations from lithium disilicate?

Lithium disilicate is widely used for manufacturing crowns and veneers where aesthetics are particularly important. With 3D printing constantly evolving, it is now possible via additive manufacturing to produce ceramic restorations with equal mechanical properties as pressed and milled lithium disilicate parts and which exhibit excellent clinical performance and marginal fits!

Did you know that you can now combine pure copper and ceramics?

The combination of metal-ceramic structures - in this case, PURE copper and alumina-based glass ceramics - enables new possibilities for 3D-printed circuit boards, electronic and telecommunication components, three-dimensional realization of conductive pathways and piezoelectric stacks or medical instruments. Applying multi-material 3D printing in such applications opens the door to manufacturing more complex structures with great potential for serial production, while simultaneously minimizing fabrication costs and shortening the entire process.

Did you know that 3D-printed ceramic bone implants perform just as well as bone taken from human grafts?

In a recent study, replacement bone implants were produced using 3D printing technology and hydroxyapatite, with a micro-CT scan of polymer foam being used to reproduce the inner structure of a bone as best as possible. Upon testing the specimens, these parts were shown to be equal to natural bone in terms of properties, without needing to take bone from other sources!

Did you know that you can 3D print with only 15ml of slurry?

The CeraFab Lab is specifically designed to save material - it requires as little as 15 ml of slurry to print and any small amount of leftover material can be reused without the need for removal. These clever features also contribute to faster setup and part removal times, making it the perfect solution for researchers or application and material developers looking for high-quality production capabilities, machine flexibility and a lower price point.

Did you know that it's possible to 3D print moon dust?

The key to any presence in space being sustainable is the ability to manufacture the necessary tools and machinery parts in situ and on-demand. By using LCM technology it is possible to produce parts from lunar regolith (moon dust simulant) with intricate shapes and highly precise dimensions. Read the whole study.

Did you know what is the highest strength of 3D-printed alumina?

Researchers at the University of Leoben, working directly with Lithoz engineers, were able to achieve the highest strength of 1GPa in 3Dprinted alumina for the very first time.

Because the parts were 3D printed with different materials (using the multi-material approach), researchers were able to digitally control material placement to such a degree that these materials became even denser during sintering than alumina alone does (monolithic alumina, 650Mpa). They were able to leverage the layer-by-layer printing process to control residual stresses and effectively create a sort of "Gorilla alumina."

The full paper on this study was published on Science Direct.

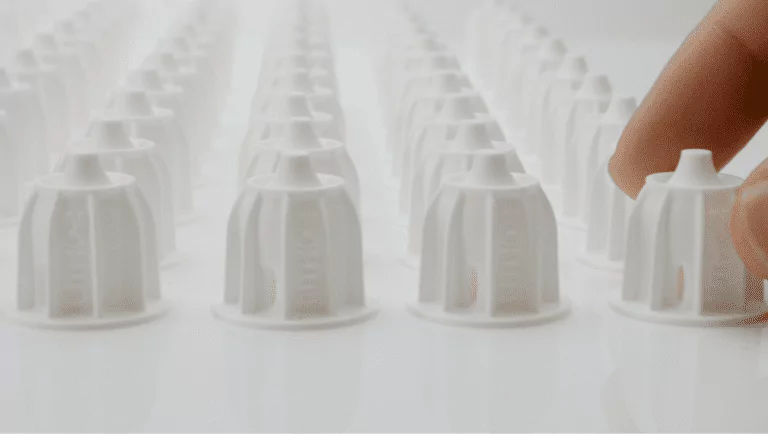

Did you know that our CeraFab build platforms are ready for the serial production of high-resolution parts?

Our industry-leading and trusted 3D printers are ready for advanced developments and mass production. Designed for scalability, the CeraFab systems (S25, S65 and S230) come with a range of build volume configurations, allowing you to print very small and high-resolution parts up to large and complex ceramic components. The IIoT and Industry 4.0 ready technology means you can easily set up digital production, enabling reliable and rapid production at a competitive price, while the CeraVision software lets you remotely monitor and manage your 3D printers.

Did you know that ceramic 3D printing can manufacture complex dental implants?

Dental implants are used as a base for replacing teeth. Using LCM technology, it is possible to manufacture even the most complex of implants in large numbers with high accuracy while still keeping costs low due to the highly efficient material usage. Zirconia or lithium disilicate are the materials of choice for crowns, bridges and veneers. Both can be processed using LCM to achieve perfect results with unprecedented fissure quality, feather edges down to 100 μm and significantly minimized manual post-processing.

Did you know that patient-specific cranial implants are producible using ceramic additive manufacturing?

This implant is based on beta-tricalcium phosphate (β-TCP) and is used for replacing parts of the human cranium. The combination of resorbability and defined macro porosity in this material allows for the ingrowth of bone cells and vascularization. 3D printing facilitates patient-specific designs based on diagnostic imaging, therefore ensuring the perfect fit of the implant and a fast surgery. Features as fine as 50 μm can easily be manufactured due to high accuracy and optimized high-performance materials.

Did you know that silicon carbide is perfect for thermal applications?

Silicon infiltrated silicon carbide (SiSiC) is a very light but also hard ceramic material and is therefore frequently used in engineering. In addition, it has very good thermal conductivity, low thermal expansion, excellent chemical resistance and outstanding tribological properties. Because of these advantages, SiSiC ceramics are often used as heat exchangers or nozzles in the chemical industry, as end pieces for different types of burners or as supporting structures for precise optical setups.

Did you know that complete bone healing is possible thanks to ceramic 3D printing?

Critically sized bone defects can be the result of severe trauma or tumors. As the body is not able to heal the bone defect by itself, a dual approach is presented here with a shell of high-strength zirconia giving mechanical support during the healing phase. The inner volume of the implant is made either of bioresorbable beta-tricalcium phosphate (LithaBone TCP 300) or hydroxy apatite (LithaBone HA 400), which is resorbed and replaced by newly formed bone ensuring complete bone healing.

Did you know silicon nitride has antibacterial and antiviral properties?

It has been discovered that coronavirus can remain infectious for hours on several materials. One strategy against this is to develop materials with surface chemistries which can inactivate the virus. Silicon nitride (Si₃N₄), a material used in spine fusion surgery, is one such candidate because it has been shown to inactivate several bacterial species and viral strains, with one study finding evidence that contact with Si₃N₄ would inactivate SARS-CoV-2 while leaving mammalian cells unaffected.

Did you know that 3D printing of multiple materials is now possible?

Rapid development of additive manufacturing technologies allows for different materials to be printed simultaneously without the need for joining or assembly.

Multi-material 3D printing establishes the possibilities of manufacturing 3D parts with enhanced properties and altered material compositions and structures from one section of the component to another. This opens the door to numerous applications, in fields ranging from electronics and embedded sensors to biomedical implants and devices, as well as aerospace, automotive and energy storage systems.

Did you know that ceramic 3D printing enables production of highly complex vaccines?

Video

Many of the successful vaccines actually use viruses to deliver the necessary elements to get immune. Such viruses are expensive to produce, furthermore the purification of these viruses is also very expensive. Using ultra-high resolution ceramic 3D printing and applying a novel design for the manufacture of chromatographic columns (the most advanced purification technology), the Nessie research project makes it possible for the first time to produce highly complex vaccines in large quantities at low cost and shows that revolutionary technologies such as 3D printing can improve our healthcare system in a sustainable way.

Article

Did you know that you can remote control the 3D printing process from your desk?

With the new CeraVision tool and set of features you can real-time monitor and control 3D printing process from remote via live-video transmission. Designed to increase the usability of the printers, you can stay productive and interact with the printers all day while working from your desk. Customers can also take advantage of their large production data volume with the new CeraDoc software module. The CeraDoc module fully documents production data for thorough traceability for an Industry 4.0 ready additive manufacturing process.

Lithoz laval nozzle silicon nitride - thermal shock

Video
The thermal shock resistance of the silicon nitride-based ceramics generated by LCM was investigated by water quenching from 900 °C to room temperature. Despite the high thermal stress, the 3D printed parts survived the test. The advantages of LCM technology, such as the ability to fabricate highly precise and complex ceramic parts, will entirely innovate the shaping of nonoxide ceramic materials in general and silicon nitride-based materials in particular.

Did you know that hollow #ceramics are possible with #lcm?

Hollowing can save material and decrease weight in bulky parts. But hollow, closed ceramics are a challenge to make by any method, and often involve creating a seam to join two halves. With LCM 3dprinters and careful post-processing, smooth single-piece hollow spheres are possible. Thin wall hollow structures can be reinforced with lattices for strong, light structures. What would you create? additivemanufacturing technology engineering solution 3dprinting

Did you know that ceramic 3D printing opens up new opportunities in manufacturing casting cores?

Turbine blades are traditionally manufactured by investment casting which begins with a ceramic core in the shape of internal cooling feature of the blade. Unfortunately, using traditional injection molded cores, the options of introducing multi-vane, complex and narrow cooling features are limited.
With the CeraFab System printer and specific materials such as LithaCore 450, the most recent casting core designs are produced while reducing lead-times and costs. Including those with complex branching structures and multiple layers of walls.

Silicon nitride dental implants:

an exceptional combination of biocompatibility, antibacterial and high-mechanical performances. With 3D printing there are no limitations to where the milling burst can get into. 3D printing patient-specific dental implants and inner threads in large number and in a highly reproducible manner is now possible with the CeraFab 7500 Dental.
